11 Stn. "B'', 9 Stn. "D" & 7 Stn. "D" + 7 Stn. "B"
Technical Specifications of Mini Tablet Press
| MODEL | ACRA- MINI PRESS II 11- B | ACRA- MINI PRESS II 9- D | ACRA- MINI PRESS II - 7 D + 7 B |
| No. of Station | 11 Station | 9 Station | 7 + 7 (COMBO) |
| Type of Tooling | B | D | " D+ B" |
| Output-Tablet/Hr (Min./Max)* Single Layer |
6,600 to 19,800 | 5,400 to 16,200 | 4,200 to 12,600 |
| Output-Tablet/Hr (Min./Max)* Two Layer |
6,600 to 13,200 | 5,400 to 10,800 | 4,200 to 8,400 |
| Operating Pressure (Max) (Single Layer) |
2 Tons | ||
| Operating Pressure (Max) (Double Layer) |
6 Tons | ||
| Depth of Fill (Single Layer) |
20 mm | ||
| Depth of Fill (Double Layer) |
9.5 mm | ||
| Max. Tablet Dia. | 16 mm | 22 mm | 22 mm |
| Turret RPM (Min / Max) (Single Layer) |
10- 30 RPM | ||
| Turret RPM (Min / Max) (Double Layer) |
10-20 RPM | ||
| Upper Punch Penetration | 2 to 6 mm | ||
| Diameter of Die | 30.16 mm | 38.10 mm | 38.10 mm |
| Length of Punch | 133.65 mm | ||
| Main Electric Motor | 3.0 H.p. x 2800 RPM x 415 V x 50 Hz | ||
| Overall Dimension (mm) | 640 (W) x 770 (L) x 1050 (H) | ||
| Net Weight (Approx.) | 450 kgs. | ||
| Gross Weight (Approx.) | 600 kgs. | ||
Depending upon the characteristic of material and shape & size of tablets.
NOTE: (1) It Is Recommended Not To Use Large Depth Of Fill Minimum Tablet Thickness And Maximum Compression Pressure For Maximum Performance Consistently
NOTE: (2) It Is A Mandatory Requirement To Use 2 Nos. Dust Extractions For Two Layer Tablets.

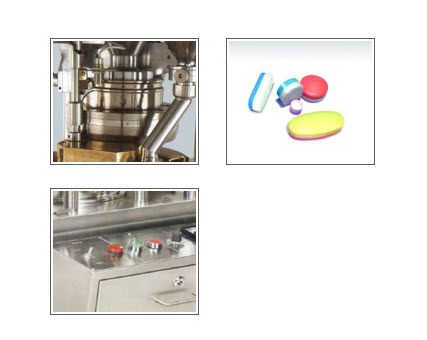

Mini Tablet Press Salient Features
- Square GMP Table Top Model, Very much Suitable for the trials of Two Layer Tablets.
- Paint free tablet manufacturing zone.
- Turret of Special Grade S.G. Iron casting
- Having Two Hopper & Single out let.
- Having Separate Layer Sampling Facility.
- Upper punch penetration, as a standard features
- Electronic Digital Tablet cum RPM Counter, as a standard features
- Inter lock Switches to all Guards, as a standard features
- With A.C. Variable Drive, as a standard features
- Lower Guard of polished Stainless Steel & Upper Guards of Acrylic Material
- S. S. Turret Guards
- Imported needle roller bearing provided at the bottom of turret.
- Anti vibration Mounts
- Reverse direction motion protection is provided to avoid accident.
- Grease Nipples are provided for effective lubrication, where required
Mini Tablet Press Optional Features
- SS Machine Mounting Stand.
- Available with PLC with MMI & Colour Touch Screen
- 3 Pcs Turret With Electroless Nickel Plating (ENPL) & S.S. 316 Die Plate.
