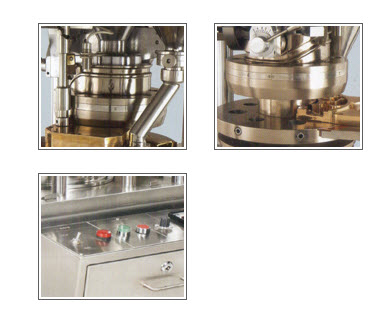

Single Rotary Mini Tablet Press with 8 Stn. "D'', 10 Stn. "B", 10 Stn. "D" & 12 Stn. "D, B & BB" ( Max. Output - 18,000 Tablet / Hour)
| Mini Tablet Press Models | ACRA-MINI-8D | ACRA-MINI-10B | ACRA-MINI-10D |
| No. of Station | 8 Station | 10 Station | 10 Station |
| Type of Tooling | D | B | D |
| Output-Tablet/Hr (Min./Max)* | 4,800 to 14,000 | 6,000 to 18,000 | 6,000 to 18,000 |
| Operating Pressure (Main) | 6 Tons (Max.) | ||
| Maximum Depth of Fill | 20.5 mm | 17.5 mm | 20.5 mm |
| Max. Tablet Dia. | 22 mm | 16 mm | 22 mm |
| Upper Punch Entry | 2 to 6 mm | ||
| Dia. of Die (mm) | 38.1 mm | 30.1 mm | 38.1 mm |
| Length of Die (mm) | 23.71 mm | 22.22 mm | 23.71 mm |
| Dia of Punch (mm) | 25.349 mm | 18.99 mm | 25.349 mm |
| Length of Punch (mm) | 133.6 mm | ||
| Turret RPM (Min / Max) | 10 - 30 RPM | ||
| Main Electric Motor | 2.0 H.p. x 1440 RPM x 415 V x 50 Hz | ||
| Overall Dimension (cm) | 770 (L) x 600 (W) x 1277 (H) | ||
| Net Weight (Approx.) | 350 kgs. | ||
| Gross Weight (Approx.) | 600 kgs. | ||
Depending upon the characteristic of material and shape & size of tablets.
- Square GMP Table Top Model
- Paint free tablet manufacturing zone.
- Turret of Special Grade S.G. Iron casting
- Upper punch penetration, as a standard features
- Electronic Digital Tablet cum RPM Counter, as a standard features
- Inter lock Switches to all Guards, as a standard features
- With A.C. Variable Drive, as a standard features
- Pre-Compression facitility as a standard features
- Lower Guard of polished Stainless Steel & Upper Guards of Acrylic Material
- S. S. Turret Guards
- Imported needle roller bearing provided at the bottom of turret.
- Anti vibration Mounts.
- Reverse direction motion protection is provided to avoid accident.
- Grease Nipples are provided for effective lubrication, where required
Optional Features
- Available with force feeding attachment
- Available with PLC with MMI & Colour Touch Screen
- Available with PLC & Industrial PC having all automation functions.
- SS Machine Mounting Stand with Caster Wheels with Drawer.
- Pcs Turret With Electroless Nickel Plating (ENPL) & S.S. 316 Die Plate.
