Square Gmp Dubble Rotary High Speed Tablet Press
- cGMP Model suitable for Dry Granulation having higher output
- Special oscillatory rotor action ensures minimum fines.
- Sturdy and durable, Easy to operate / clean / maintain.
- Noise level minimum, Continuous oscillating stirrers drive.

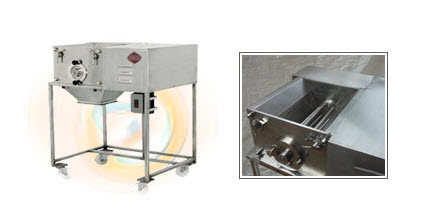

Technical Specifications of Oscillating Granulator
| MODEL | ACRA-OG-HORIZONTAL |
| Hopper Size | 33 Liter |
| Screen Area | 388 mm (W) X 762 mm (L) |
| Stirrer Size | Ø 138 mm x 368 mm Length |
| Oscillation | 110 Per Minute |
| Output * | 30 to 200 Kg/Hour |
| Charging height | 1106 + 5 mm |
| Discharging height | 630 + 5 mm |
| Power supply | 1 HP / 1440 RPM / 3 Phase |
*Depending upon the characteristic of material and screen size
Oscillating Granulator Salient Features
- In compliance with cGMP guidelines.
- Important machine in the process of in granulation in tablet making as quality of tablet is determined by the desirable quality of the granules used for its compression.
- Can be used for dry aspect of the granulation process.
- Quality & percentage of granules can be achieve better compared to other processing machineries like Multi Mill, Comminuting Mill etc.
- Special oscillatory rotor action ensures minimum fines.
- Contact parts are made of SS 316.
- Sturdy and durable.
- Easy to operate / clean / maintain.
- Noise level minimum.
- Continuous oscillating stirrers drive.
- Simple screen holding and tensioning device.
- Screen – Available in different size / durable / cost effective.
- AC Variable Frequency Drive – OPTIONAL at extra cost.
- Castors provided for mobility
