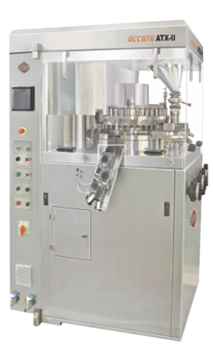

ATX-II High Speed Single Rotary Tablet Press
ATX - II
High-Speed Tablet Press II with 37 Stn. "D'', 45 Stn. "B", 55 Stn. "BB" & 61 Stn. "BB"
- Equipped with a pre-compression facility for higher tablet output.
- Features a hydraulic power pack for pressure loading and overload release.
- Center shaft-driven turret through a heavy-duty reduction gearbox.
- Single piece turret of special grade casting with an optional three-piece turret with SS-316L middle plate and electroless nickel plating.
- Maximum Output: 2,56,200 Tablets per Hour.
Salient Features
-
The machine is having PRE-COMPRESSION facility. -
It is a high speed single rotary tablet press for higher tablet output.
-
The machine having Hydraulic Power pack for pressure loading and overload release.
-
Machine is having center shaft driven turret through heavy duty reduction gear box.
-
The machine is having Electromagnetic Clutch arrangements.
-
The machine is having bottom driven force feeding system for material feeding.
-
The machine is having one piece turret of special grade casting.
-
However, three piece turret with SS-316L middle plate is also available (optionally).
-
Electro less nickel plating can also be available to the turret. (optionally).
-
Guards interlocked for safety, all upper guards of transparent acrylic material.
-
Lower Guards of polished Stainless Steel SS 304.
-
All the tablet parameters can be fine tuned during the operation of the machine from outside.
-
the tableting zone, with front controls at outside of the machine, having SEIKO type dials. Machine is Three sides open with Acrylic upper Guards.
-
Control panel is at backside of the machine & all controls are on tablet ejection side.
-
The machine is having A.C. variable frequency drive for the main motor & for force feeding motors to synchronize machine's speed & feed both.
With Automation, CFC & AWC (Optionally)
-
With a Motorized dozer, for precise depth of fill adjustment.
-
With load cell at Main Compression for Pressure measurement.
-
With auto sampling based on, either time or revolution of punch no.
-
With auto rejection of any single tablet out of the prescribed compaction force limit.
-
With SCADA with industrial PC. having 12” colour touch screen (21 CFR part 11 compliance).
-
With graphical as well as numeric representation of each punch force.
-
Auto tablet rejection & Random sampling during the start & stop of the m/c. (Optionally).
-
Servo motor mechanism for tablet thickness/depth of fill Auto dialing though PLC. (Optionally).
-
PLC-HMI color touch screen. (Optionally).
Technical Specifications
| TYPE | ATX II - 37 | ATX II - 45 | ATX II - 55 | ATX II - 61 |
| No. of Station | 37 | 45 | 55 | 61 |
| Type of Tooling | D | B | Bb | Bb |
| Output(tablets/hr)*Maximum / Minimum | 155400/26640 | 189000/32400 | 231000/39600 | 256200/43920 |
| Max. Operating Pressure-Main(kn) | 100 | 65 | 65 | 65 |
| Max. Operating Pressure- Pre Comp. (kn) | 15 | 15 | 15 | 15 |
| Max. Tab. Diameter (mm) | 25 | 16 | 11 | 11 |
| Max. Depth of Fill(mm) | 20 | 16 | 11 | 11 |
| Upper Punch Penetration - Main (mm) | 3 To 6 | |||
| Upper Punch Penetration - Pre Comp. (mm) | 2 To 5 | |||
| Total Power (kw/hp) | 6.75/9.00 | |||
| Force Feeder Electric Motor (kw/hp) | 0.19/0.25 | |||
| Power Pack Electric Motor (kw/hp) | 0.75/1.00 | |||
| Electrics | 415v/3phase/50hz 460v/3phase/60hz 460v/3phase/60hz |
|||
| Over All Dimensions (mm) | 1500 (l) X 1200 (w) X 2000 (h) (Guard Closed). | |||
| Over All Dimensions (mm) | 2220 (l) X 2350 (w) X 2100 (h) (Guard Open ) | |||
| When Upper Guards Open (mm) | .2220 (l) X 2530 (w) X 1940 (h) | |||
| Net Weight(kg) | 2200 | |||
| Case Dimensions (mm) | 2100 (l) X 1700 (w) X 2150 (h). | |||
| Gross Weight (kg) | 2500 | |||
* Depending upon material characteristics & available room atmosphere only.
NOTE: DUE TO CONTINUOUS IMPROVEMENTS IN THE MACHINERY, THE SPECIFICATION OF THE MACHINERY IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE. Electrical Specifications can be customized, like 60 Hz, etc. as per customer choice.
*Machine outputs mentioned are rated outputs and can vary depending on the product characteristics, Tablet dimension/shape/size, depth of fill, ambient conditions, operator skill, and machine maintenance.
