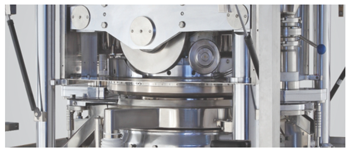

High Speed Tablet Press IV
High Speed Tablet Press IV with 45 Stn. "D'', 55 Stn. "B", 61 Stn. "B" & 75 Stn. "BB"
- High-speed double rotary tablet press designed for higher tablet output.
- Square design adhering to cGMP standards, featuring a pre-compression facility.
- Equipped with an A.C. variable frequency drive for the main motor and force feeding motors.
- Features an electromagnetic clutch arrangement for smooth operation.
- Optional accessories include two-layer attachment, PLC with color MMI touch screen, and motorized hydraulic power pack.
- Maximum Output: 5,40,000 Tablets per Hour.
- Main Electric Motor: 11.25 kW / 15 HP (all models).
Salient Features of High Speed Tablet Press
-
It is a high speed double rotary tablet press for higher tablet output. -
Machine is having a square design with full consideration of cGMP standards.
-
The machine is having PRE-COMPRESSION facility.
-
The machine is having A.C. variable frequency drive for the main motor.
-
The machine is having Electromagnetic clutch arrangements.
-
All the tablet parameters can be fine tuned during the operation of the machine from outside the tableting zone, with front controls at outside of the machine, having SEIKO type dials.
-
The machine is having A.C. variable frequency drive for force feeding motors, which enables operators to synchronize machine's speed & feed both.
-
The machine is having Helical gear ring & pinion gear, to drive the turret.
-
All upper Guards of transparent acrylic material with interlock switches for safety.
-
Lower Guards of polished Stainless Steel SS 304.
-
The machine is having excellent BOTTOM DRIVEN FORCE FEEDING SYSTEM for material feeding.
-
The machine is having three piece turret with SS-316 middle plate.
-
Electro less nickel plating is provided to the turret.
-
Two layer attachment can also be provided, (Optionally).
-
PLC with color MMI touch screen (Optionally).
-
The machine having Motorized Hydraulic Powerpack for pressure loading and overload release.
With Auto Force Rejection Through Compaction Force
-
With load cell at Main Compression for Pressure measurement.
-
With auto sampling based on, either time or revolution of punch no.
-
With auto rejection of any single tablet out of prescribed compaction force limit.
-

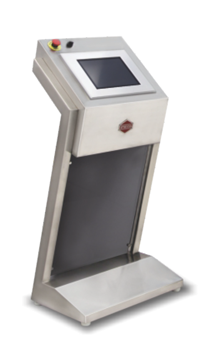

SCADA with industrial PC. having 15” colour touch screen (21 CFR part 11 compliance).
-
With graphical as well as numeric representation of each individual punch force.
Technical Specifications
| MACHINE TYPE | PRESS IV-45 | PRESS IV - 61 | PRESS IV - 75 | PRESS IV - 25 - SLG | PRESS IV - 35 - SLG |
| Number of Stations | 45 | 61 | 75 | 25 | 35 |
| Type of Tooling | D | B | BB | SLUGGING | SLUGGING |
| Output-Tablets/Hr. | 65,000 to | 87,840 to | 1,08,000 to | (Min.) 36,000 / | (Min.) 50,400 / |
| (Min./Max.)* | 3,25,000 | 4,39,200 | 5,40,000 | (Max.) 1,05,000 | (Max.) 1,45,000 |
| Max. Operating Pressure(Main) | 10 Tons | 6.5 Tons | 6.5 Tons | 12 Tons | 12 Tons |
| Max. Operating Pressure(Pre) | 1 Ton | 1 Ton | 1 Ton | 01 Ton | 01 Ton |
| Depth of Fill | 20 mm | 17.4 mm | 17.4 mm | 30 mm | 30 mm |
| Max. Tablet Diameter | 25 mm | 16 mm | 11.1 mm | 40 mm | 30 mm |
| Upper Punch Enrty | 1.5 to 8 mm | 1.5 to 8 mm | 1.5 to 8 mm | 1.5 to 8 mm | 1.5 to 8 mm |
| Power Total | 8.75 kw/11.7 HP | 8.75 kw/11.7 HP | 8.75 kw/11.7 HP | 12.48 Kw / 16.7 HP | 12.48 Kw / 16.7 HP |
| Power Main Electric Motor | 11.25 kw /15 HP | 11.25 kw /15 HP | 11.25 kw /15 HP | 11.25 kw /15 HP | 11.25 kw /15 HP |
| 1440 RPM, 415 V. | 1440 RPM, 415 V. | 1440 RPM, 415 V. | 960 RPM, 415 V. | 960 RPM, 415 V. | |
| 50 Hz, 3 Ph. | 50 Hz, 3 Ph. | 50 Hz, 3 Ph. | 50 Hz, 3 Ph. | 50 Hz, 3 Ph. | |
| Power | 0.19 KW / 0.25 HP | 0.19 KW 0.25 HP | 0.19 KW / 0.25 HP | 0.19 KW / 0.25 HP | 0.19 KW / 0.25 HP |
| (Feeder Motors 2 Nos.) | 1440 RPM, 415 V. | 1440 RPM, 415 V. | 1440 RPM, 415 V. | 1440 RPM, 415 V. | 1440 RPM, 415 V. |
| 50 Hz, 3 Ph. | 50 Hz, 3 Ph. | 50 Hz, 3 Ph. | 50 Hz, 3 Ph. | 50 Hz, 3 Ph. | |
| Overall Dimension (mm) | Guard Open. | 2500 (L) X 2500 (W) X 2275 (H) | 2570 (L) x 2800 (W) x2330 (H) | 2570 (L) x 2800 (W) x2330 (H) | |
| Overall Dimension (mm) | Guard Close | 1500 (L) X 1580 (W) X 1900 (H) | 1500 (L) X 1580 (W) X 1900 (H) | 1500 (L) X 1580 (W) X 1900 (H) | |
| Net Weight (Approx) | 3800 kg | 3800 Kg. | 3800 Kg. | ||
| Case Dimension (mm) | 3100 (L) X 3200 (W) X 2450 (H) | 3100 (L) X 3200 (W) X 2450 (H) | 3100 (L) X 3200 (W) X 2450 (H) | ||
| Gross Weight (Approx) | 4150 kg | 4150 kg | 4150 kg | ||
* Depending upon material characteristics & available room atmosphere only.
NOTE: DUE TO CONTINUOUS IMPROVEMENTS IN THE MACHINERY, THE SPECIFICATION OF THE MACHINERY IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE.
Pre-pressure and Main pressure could be changed depending on the size of the compress and filling depth, powder or granulation. It depends on the physical specification of the used material for the compress.
The above specification is subject to change without prior notice for the technical development.
It is recommended not to use a large depth of fill, minimum tablet thickness, and maximum compression pressure consistently for maximum performance.
Technical rights to change catalogs, specifications, and features are reserved with the manufacturer. Actual output may vary against indicated production on the product under compression and RPM on the lower side.

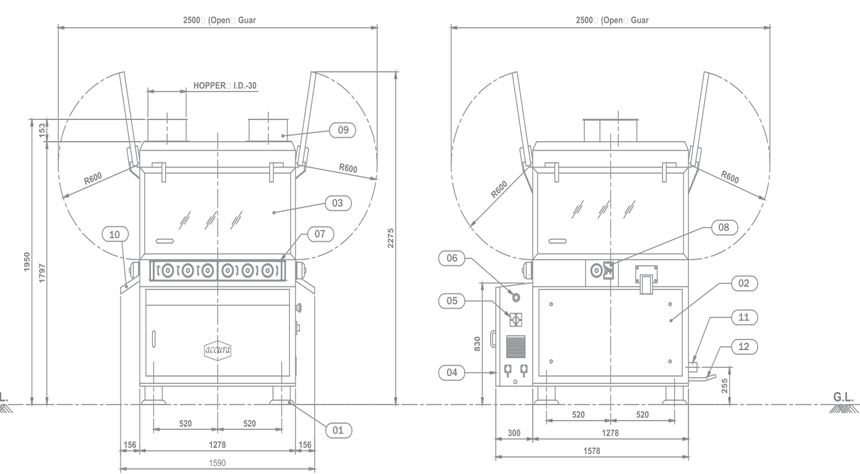

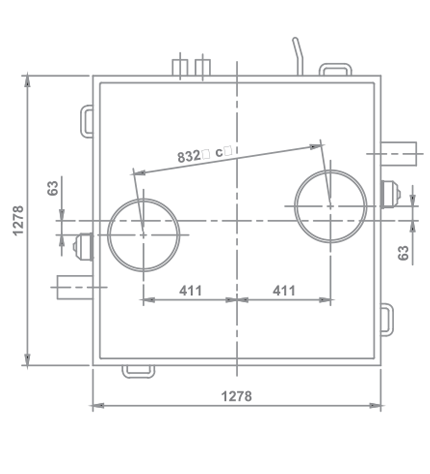

Drawing of High Speed Tablet Press IV
