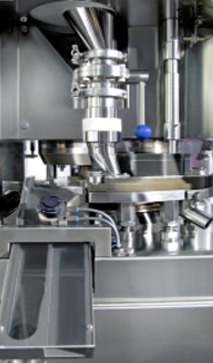

Mini R & D Single Rotary Tablet Press Machine
ACT - I
- Equipped with motorized pre-compression of 4 tons (40 kN) and main compression of 10 tons (100 kN).
- Features motorized dozer for precise depth of fill adjustment.
- Incorporates A.C. variable drive and load cells at pre and main compression.
- Includes motorized force feeder and PLC with IPC 15” touch screen.
- Upper punch penetration with interlock switches to all guards.
- Type of Tooling: D, B, BB, D+B
- Max. Operating Pressure (Main): 100 kN
Salient Features of Mini Tablet Press
-
Square GMP Model -
Center drive fitted with gearbox.
-
Single Rotary Tablet Presses with Bi-Layer Facility.
-
With motorized pre-compression of 04 tons. (40 kn)
-
With Motorized main compression of 10 tons. (100 kn)
-
With a Motorized dozer, for precise depth of fill adjustment.
-
With A.C. Variable drive.
-
With load cells at pre & main compression.
-
With Motorized force feeder.
-
Bi-Layer attachment (optionally).
-
With PLC & IPC 15” touch screen.
-
Auto weight control (AWC) & Auto rejection.
-
Vibration free and easy to operate at 50 RPM.
-
No oil lubrication, all grease lubrication.
-
NO Hydraulics, no oil leakage.
-
With upper punch penetration.
-
With Interlock switches to all guards.
-
Lower guards of polished stainless steel
-
Upper guards of acrylic material.
Technical Specifications
| TYPE | ACT-I 16 | ACT-I 20 | ACT-I 28 | ACT-I COMBO |
| Number of Station | 16 | 20 | 28 | 8D+8B |
| Type of Tooling (As per EU1) | D | B | BB | D+B |
| Output-Tablets/Hour (Min / Max.)(Single Layer) | 9600/48000 | 12000/60000 | 16800/84000 | 4800/24000 |
| Output-Tablets/Hour (Min / Max.)*(Bi-Layer) | 9600/24000 | 12000/30000 | 16800/42000 | 4800/12000 |
| Turret RPM (Min.- Max.) (Single Layer) | 15 | |||
| Turret RPM (Min.- Max.) (Bi-Layer) | 10-25 | |||
| Max. Operating Pressure-Main (kN) | 100 | 100 | 100 | 100 |
| Max. Operating Pre. Pressure (kN) | 40 | 40 | 40 | 40 |
| Max. Tablet Diameter (mm) | 25 | 16 | 11 | 25+16 |
| Max. Tablet Thickness (mm) | 8.5 | |||
| Depth of Fill (mm) (With Three Different Lower Track) | 3-10 | 8.5-14 | 12.5-18 | |
| Upper Punch Entry Main (mm) | 1 To 6 | |||
| Upper Punch Entry Pre Compression (mm) | 1 To 6 | |||
| Power-Total (kw/hp) | 2.325/3.1 | |||
| Main Electric Motor (kw/hp) | 3.75/5, x 1440 RPM | |||
| Main Press Roll Electric Motor(kw/hp) | 750 W x 3000 RPM | |||
| Pre. Press Roll Electric Motor(kw/hp) | 750 W x 3000 RPM | |||
| Weight Adj. Electric Motor(kw/hp) | 750 W x 3000 RP | |||
| Hopper Capacity | 4 Liters | |||
| Overall Dimensions(Close Guard) cm | 88W x 105L x 180H | |||
| Overall Dimensions(Open Guard) cm | 194W x 199L x 200H | |||
| Case Dimensions (cm) | 115x130x195 H | |||
| Net Weight (kg) | Approx. 1200 | |||
| Utilities | 1) Suction Air: 300 CFM | 2) Power Supply: 415 V,3 Phase, 50 Hz | ||
* Depending upon material characteristics & available room atmosphere only.
NOTE: DUE TO CONTINUOUS IMPROVEMENTS IN THE MACHINERY, THE SPECIFICATION OF THE MACHINERY IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE. Electrical Specifications can be customized, like 60 Hz, etc. as per customer choice.
*Machine outputs mentioned are rated outputs and can vary depending on the product characteristics, Tablet dimension/shape/size, depth of fill, ambient conditions, operator skill, and machine maintenance.
