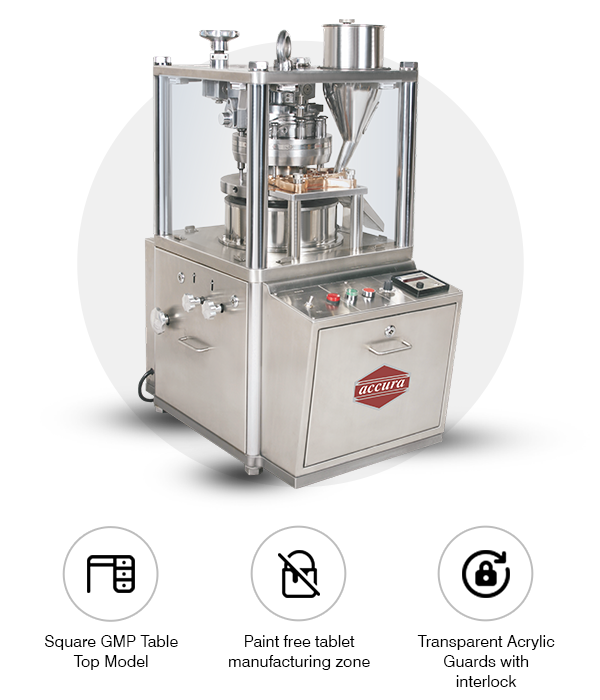

Single Rotary Mini Tablet Press Machine
R&D MODEL
Single Rotary Mini Tablet Press with 8 Stn. "D'', 10 Stn. "B", 10 Stn. "D" & 12 Stn. "D, B & BB"
- Special Grade S.G. Iron Casting Turret
- Type of Tooling: D Tooling (ACRA-MINI-D), B Tooling (ACRA-MINI-B)
- Electronic Digital Tablet and RPM Counter
- Maximum Output: 18,000 Tablets per Hour
- Maximum Operating Pressure: 60 kN
- Maximum Tablet Diameter: 25 mm (ACRA-MINI-D), 16 mm (ACRA-MINI-B)
- Depth of Fill: 20.50 mm (ACRA-MINI-D), 17.50 mm (ACRA-MINI-B)
Salient Features
Salient Features of Single Rotary Mini Tablet Press
-
Square GMP Table Top Model. -
Paint free tablet manufacturing zone.
-
Turret of Special Grade S.G. Iron casting.
-
Aluminium Turret Guards Anti Vibrating mount.
-
Upper punch penetration, as a standard features.
-
Transparent Acrylic Guards with interlock.
-
Electronic Digital Tablet cum RPM Counter, as a standard features.
-
Imported needle roller bearing provided at the bottom of turret.
-
Grease Nipples are provided for effective lubrication, where required.
-
Force Feeder, combination of D & B Tooling, PLC and etc. (Optionally).
Technical Specifications of Single Rotary Mini Tablet Press
| TYPE | ACRA-MINI-D | ACRA-MINI-D | ACRA-MINI-B | |
| Number of Station | 8 | 10 | 10 | |
| Type of Tooling (As per EU1) | D | D | B | |
| Output-Tablets/Hour (Min / Max.) | 4,800 / 14,400 | 6,000 / 18,000 | 6,000 / 18,000 | |
| Turret RPM (Min.- Max.) | 10 - 30 | |||
| Max. Operating pressure-Main (kN) | 60 | |||
| Max. Tablet Diameter (mm) | 25 | 16 | ||
| Max. Tablet Thickness (mm) | 8.5 | |||
| Depth of Fill (mm) | 20.50 | 17.50 | ||
| Upper Punch Entry Main (mm) | 2 To 6 | |||
| Upper Punch Entry Pre-Compression(mm) | 1 To 5 | |||
| Main Electric Motor (kw/hp) | 2.25 kW / 3 hp x 2800 RPM | |||
| Hopper Capacity | 4 Litres | |||
| Overall Dimensions (Close guard) cm | 61 W x 84 L x 110 H | |||
| Overall Dimensions (Open guard) cm | 145 W x 145 L x 143 H | |||
| Case Dimensions (cm) | 96 W x 120 L x 125 H | |||
| Net Weight (kg) | Approx. 375 | |||
| Gross Weight(kg) | Approx. 500 | |||
| Utilities : | 1) Power Supply: | (a) 415 V, 3 Phase, 50 Hz (b) 480 V, 3 Phase, 60 H (c) 220 V, 3 Phase, 60 Hz |
||
| 2) Power-Total (kw/hp): | 2.25 kW / 3 hp | |||
* Depending upon material characteristics & available room atmosphere only.
NOTE: DUE TO CONTINUOUS IMPROVEMENTS IN THE MACHINERY, THE SPECIFICATION OF THE MACHINERY IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE.
Pre-pressure and Main pressure could be changed depending on the size of the compress and filling depth, powder or granulation. It depends on the physical specification of the used material for the compress.
The above specification is subject to change without prior notice for the technical development.
It is recommended not to use a large depth of fill, minimum tablet thickness, and maximum compression pressure consistently for maximum performance.
Technical rights to change catalogs, specifications, and features are reserved with the manufacturer. Actual output may vary against indicated production on the product under compression and RPM on the lower side.
