Fully Computerized Tablet Press
(F Series)


accura

F3000 Single Rotary Tablet Press

F 3000

High Quality R&D & Small Scale Batches

  • 20 STN "D" Tooling / 24 STN "B" Tooling / 32 STN "BB" Tooling
  • Single Rotary Tablet Press
  • Suitable For Single & Bi-layer
  • Fully Automatic With 21 CFR Part 11 Compliance
  • With Pre Compression Of 5 Tons. With Main Compression Of 10 Tons.
DOWNLOAD ENQUIRY

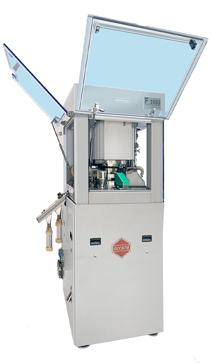

F3000 Single Rotary Tablet Press

Salient Features

  • Single Rotary Tablet Press with Bi-Layer Facility.
  • In Compliance with cGMP.
  • Specially designed heavy C.I. Structure.
  • Centre drive fitted with gear box.
  • Main Electric Motor for Turret drive with AC VFD
  • Motorized Lower Pre- Compression of 5 TONS. (50 KN)
  • Motorized Lower Main Compression of 10 TONS. (100 KN)
  • Ejection Force Monitoring Available with CFC System.
  • Motorized force feeder with Zero Clearance advance system.
  • AC Variable Drive Force Feeding System.
  • Load cell at Pre- Compression & Main Compression
  • Industrial PC, having 15” Colour Touch Screen.
  • Vibration free and easy to operate at 50 RPM.
  • Upper Punch Main Penetration 2mm to 8mm.
  • Upper Punch Pre- Press Penetration 2mm to 8mm.
  • With interlock switches to all upper guards.
  • Sliding Type Per & Main Upper Pressure Roll Assembly.
  • Auto Sampling based on, either time or revolution or punch nos.
  • Initial Startup & Stop Rejection.
  • Fully Computerized PLC Based Industrial Touch Screen Control.
  • Encoder System for Better Accuracy.
  • Powder Level Sensor.
  • Auto Lubrication.
  • Bi-Layer System (Optional).
  • With interlock switches to all upper guards.
  • Recipe management & 'n' No. of recipe storage.
  • Reports Available (Audit/Alarm/Recipe/Product/Machine).
  • Server integration (Optional).
  • Auto Weight Control & Single Tablet Rejection through Compaction Force Control - CFC.
  • Motorized dozer for 1st filling and 2nd filling, to precise Depth of Fill adjustment for each Layer.
  • Graphical appearance of the value of pressure on individual punch at pre and main pressure.
  • 3 Piece Turret with Die - Table SS-316L & Upper & Lower Piece Electro-Less Nickel Plated.
  • Machine is Four Sided open with Upper Guards; Control Panel is Separate.

Technical Specifications

TYPE F 3000 - 20D F 3000 - 24B F 3000 - 32BB F 3000 -10D+10B F-3000 – 6D+6B+6BB
Number of Stations 20 24 32 10+10 6+6+6
Type of Tooling (As per EU1) D B BB D+B D+B+BB
Output-Tablets/Hour (Min / Max.)(Single Layer) 12000/60000 14400/72000 19200/96000 6000/30000 3600/18000
Output-Tablets/Hour (Min / Max.)*(Bi-Layer) 12000/30000 14400/36000 19200/48000 6000/15000 3600/9000
Turret RPM (Min.- Max.) (Single Layer) 10/50
Turret RPM (Min.- Max.) (Bi-Layer) 10/25
Max. Operating Pressure-Main (kN) 100
Max. Operating Pre. Pressure Tamp (kN) 50
Max. Tablet Diameter (mm) 25 16 11 25+16 25+16+11
Max. Tablet Thickness (mm) 8.5
Depth of Fill (mm) (With Three Different Lower Track) 20 18 18 20+18 20+18
Upper Punch Entry Main (mm) 2 To 8
Upper Punch Entry Pre Compression (mm) 2 To 8
Main Electric Motor (kw/hp) 3.75/5, x 1440 RPM
Main Press Roll Servo Motor(kw/hp) 0.75 / 1.0 x 3000 RPM
Pre. Press Roll Servo Motor(kw/hp) 0.40 / 0.536 x 3000 RPM
1st. & 2nd Weight Adj. Servo Motor(kw/hp) 0.4 / 0.536 x 3000 RPM x 2 Nos. = 0.8 / 1.072 kW/hp
Feeder Electric Motor (kw/hp) 0.090 / 0.1207 x 1440 RPM x 2 Nos. = 0.18 / 0.24 kW/hp
Hopper Capacity 3.5 Liters
Overall Dimensions(Close Guard) cm 107L x 140W x 178H
Overall Dimensions(Open Guard) cm 205L x 205W x 197H
Net Weight (kg) Approx. 1300
Gross Weight (kg) Approx. 1600
Utilities Suction Air: 300 CFM (Qty. - 01 for Single Layer): 300 CFM (Qty.- 02 for Bi Layer)
Compressed Air: 7Kg/Sq.cm (7 Bar)
Power Supply: (a)415 V, 3 Phase, 50 Hz (b) 480 V, 3 Phase, 60 Hz (c) 220 V, 3 Phase, 60 Hz
Power-Total (kw/hp): 5.88kW / 7.85hp

* Depending upon material characteristic & available room atmosphere only.

NOTE : DUE TO CONTINUOUS IMPROVEMENTS IN THE MACHINERIES, SPECIFICATION OF THE MACHINERIES IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE.

  • Selection Of Power Supply Out Of (A) (B) (C), Points Should Be Mention Clearly At The Time Of Preparing Purchase Order.
  • Pre-pressure and Main pressure could be changed depending on the size of the compress and filling depth, powder or granulation. It is dependent on the physical specification of the used material for the compress.
  • The above specification is the subject to change without prior notice for the technical development.
  • ** Tools only permit up to 70 kN
