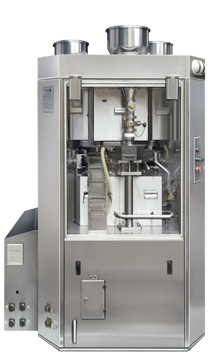

Triple Layer High Speed Single Sided Tablet Press

Salient Features

Triple Rotary Tablet Press, with Interchangeable Turret.
Specially designed heavy C.I. Structure.
Heavy Duty Oil Immersed Gear Box for Turret Drive.
AC VFD with Electromagnetic Clutch.
Directly Driven Turret having Middle plate of SS 316 & ELNP on C.I. Portion.
Motorized 1^st and 2^nd layer compression of 5 TON and motorized 3^rd layer compression of 10 Ton.
Motorized dozer, for precise depth of fill adjustment for each layer.
Motorized Force Feeders with zero clearance.
Vibration free and easy to operate at 35 RPM.
Upper Punch Penetration.
Load Cell at all three lower pressure rolls assly.
Industrial PC / HMI, having 12” Colour Touch Screen.
Machine as Four Sided Open with Upper Guards, Control Panel is Separate.
With Interlock Switches to all Upper Guards.
Initial Start up & Stop Rejection by default.
Recipe management & 'n' No of Recipe Storage.
Audit Trail Reports. And Pen drive connectivity with Printing Facility.
The after sales, PLC Complaints can be carried out by internet Thru Team Viewer.
SAMPLING: Pneumatically 1^st layer and 2^nd layer. In 1^st later only one layer will be ejected, in 2^nd layer 1^st layer and 2^nd layer combined two layers will be ejected. In 3^rd final layer all there layer will come out as a finally compressed tablet.

TYPE		ACT – III-T- 51	ACT-III-T-65	ACT-III-T-81
Type of Tooling (As per EU1)		D	B	BB
Output-Tablet/Hour (Min / Max.)	Single Layer	45900/122400	58500/156000	72900/194400
	Double Layer	45900/107100	58500/136500	72900/170100
	Triple Layer	45900/107100	58500/136500	72900/170100
Revolution of Turret (R.P.M.)	Single Layer	15-40	15-40	15-40
	Double Layer	15-35	15-35	15-35
	Triple Layer	15-35	15-35	15-35
Max. 1^st Operation Pressure Main (kN)		50	50	50
Max. 2^nd Operation Pressure Main (kN)		50	50	50
Max. 3^rd Operation Pressure Main (kN)		100	100	100
Max. Tablet Diameter (mm)		25	16	11
Max. Tablet Thickness (mm)		18
Max Depth of Fill (mm)		1^st: 5-12
		2^nd: 10-20
		3^rd: 20-35
Upper Punch Entry Main (mm)		1 To 6
Power-Total (kw/hp)		15.65 KW /21.27 HP
Main Electric Motor (kw/hp)		11 KW / 15 HP X 1440 RPM
Press Roll Electric Motor(kw/hp)		750 W X 3000 RPM
Weight Adj. Electric Motor(kw/hp)		750 W X 3000 RPM
Feeder Electric Motor (kw/hp)		0.37/0.50x1365 RPM X 3 NOS = 1.11 / 1.5 KW/HP
Hopper Capacity		15 Liters
Overall Dimensions(Close Guard) cm		170L X 175W X 204H
Overall Dimensions(Open Guard) cm		339L X 339W X 204H
Case Dimensions cm		210L X 215W X 220H
Net Weight (kg)		6400 kg
Gross Weight (kg)		6800 kg
Utilities		Suction Air: 300 CFM
		Compressed Air: 7Kg/Sq.cm (7 Bar)
		Power Supply: 480 V, 3 Phase, 60 Hz
